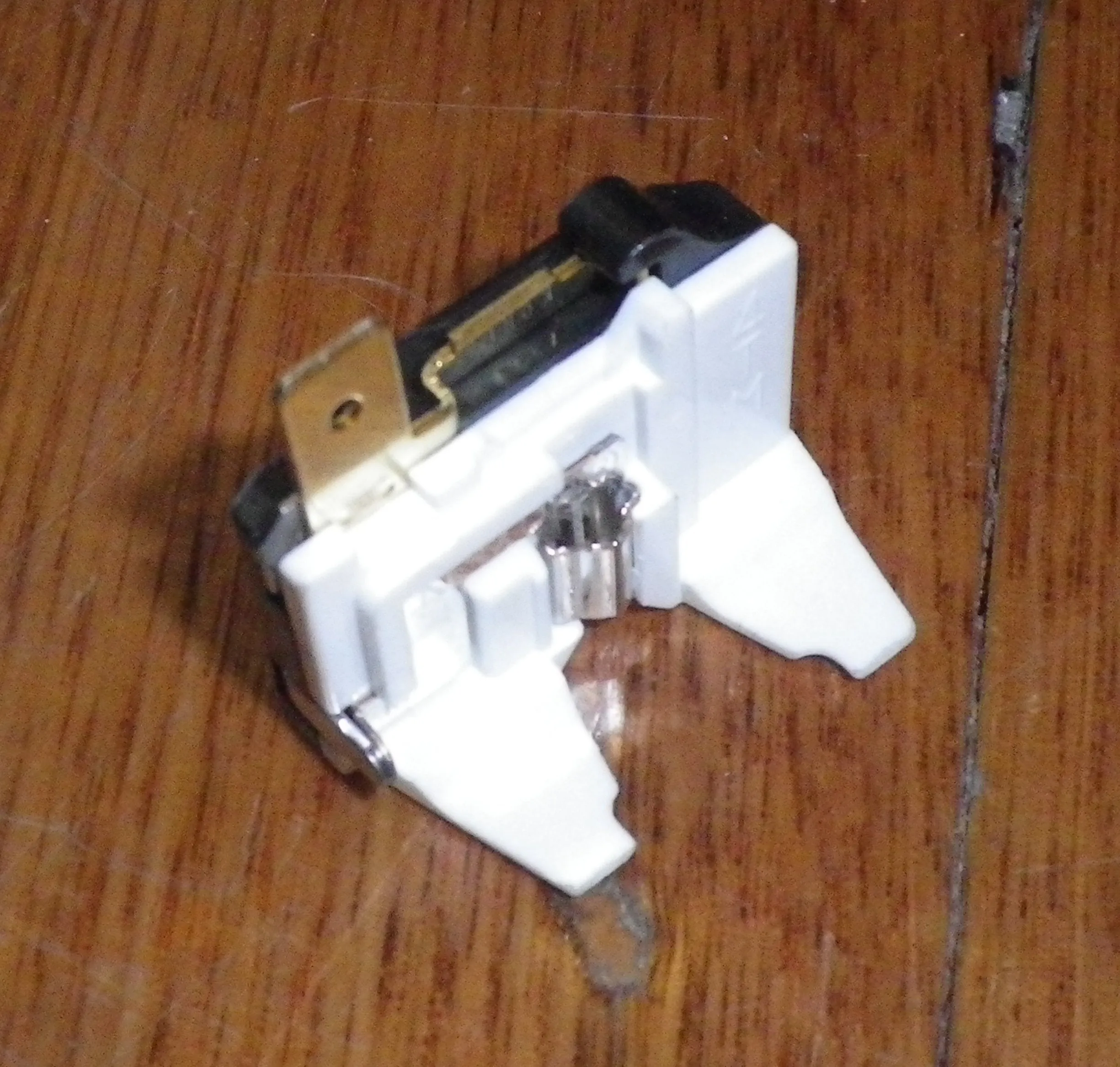

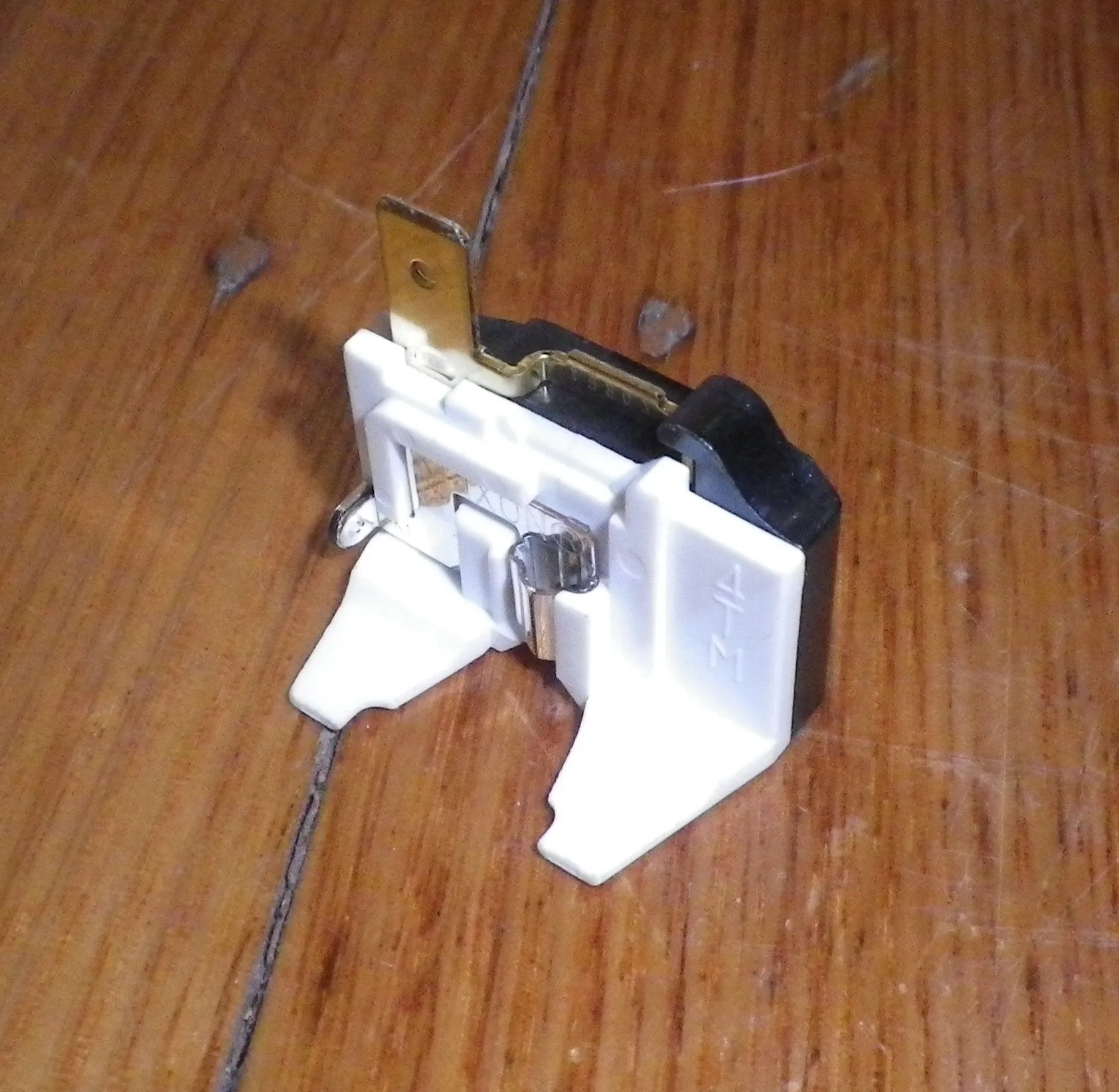

LG Compressor Overload Cutout.

Part No. 6750C-0005C, 4TM265RFB, 265RFBYY-52, 265RFBYY-520.

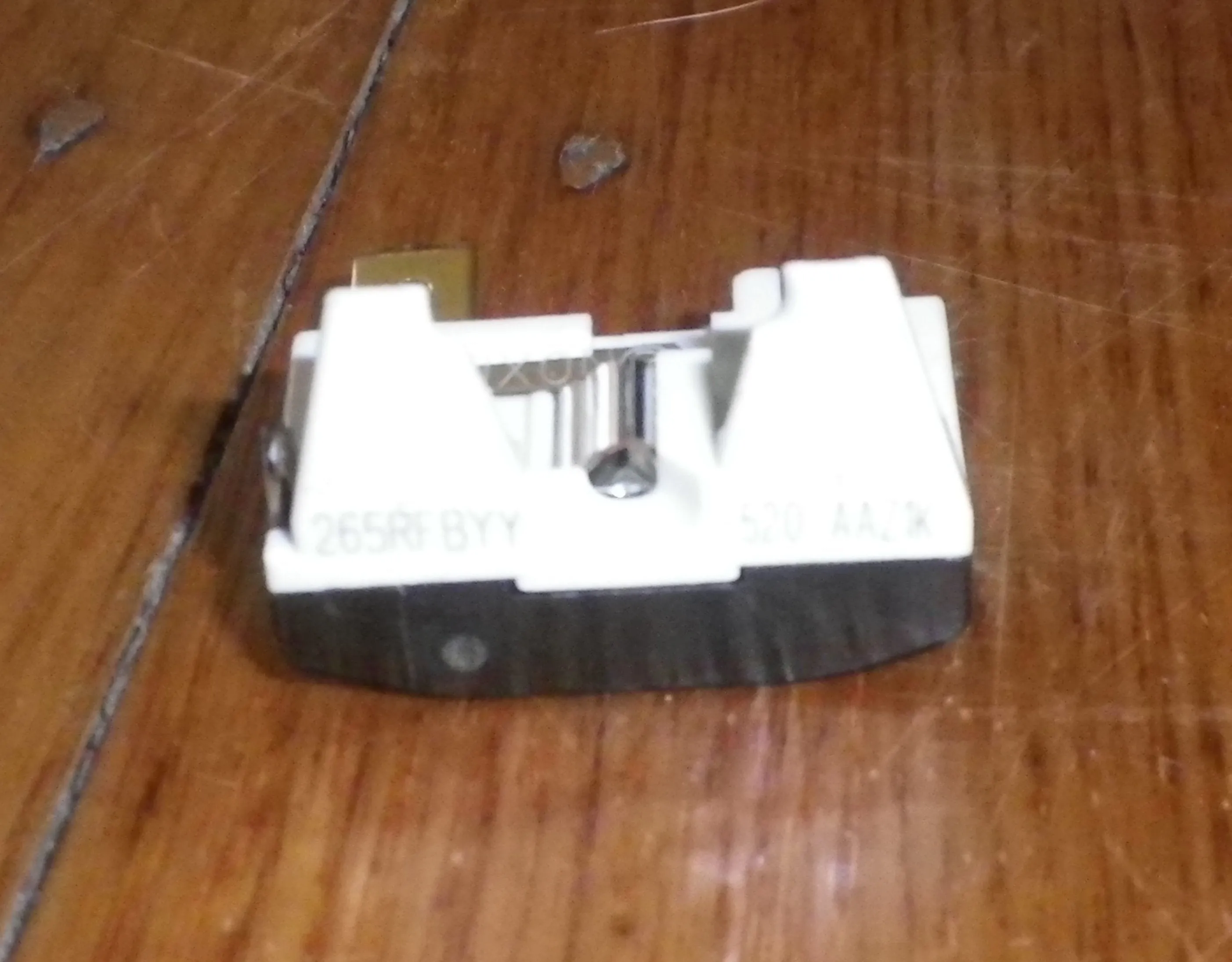

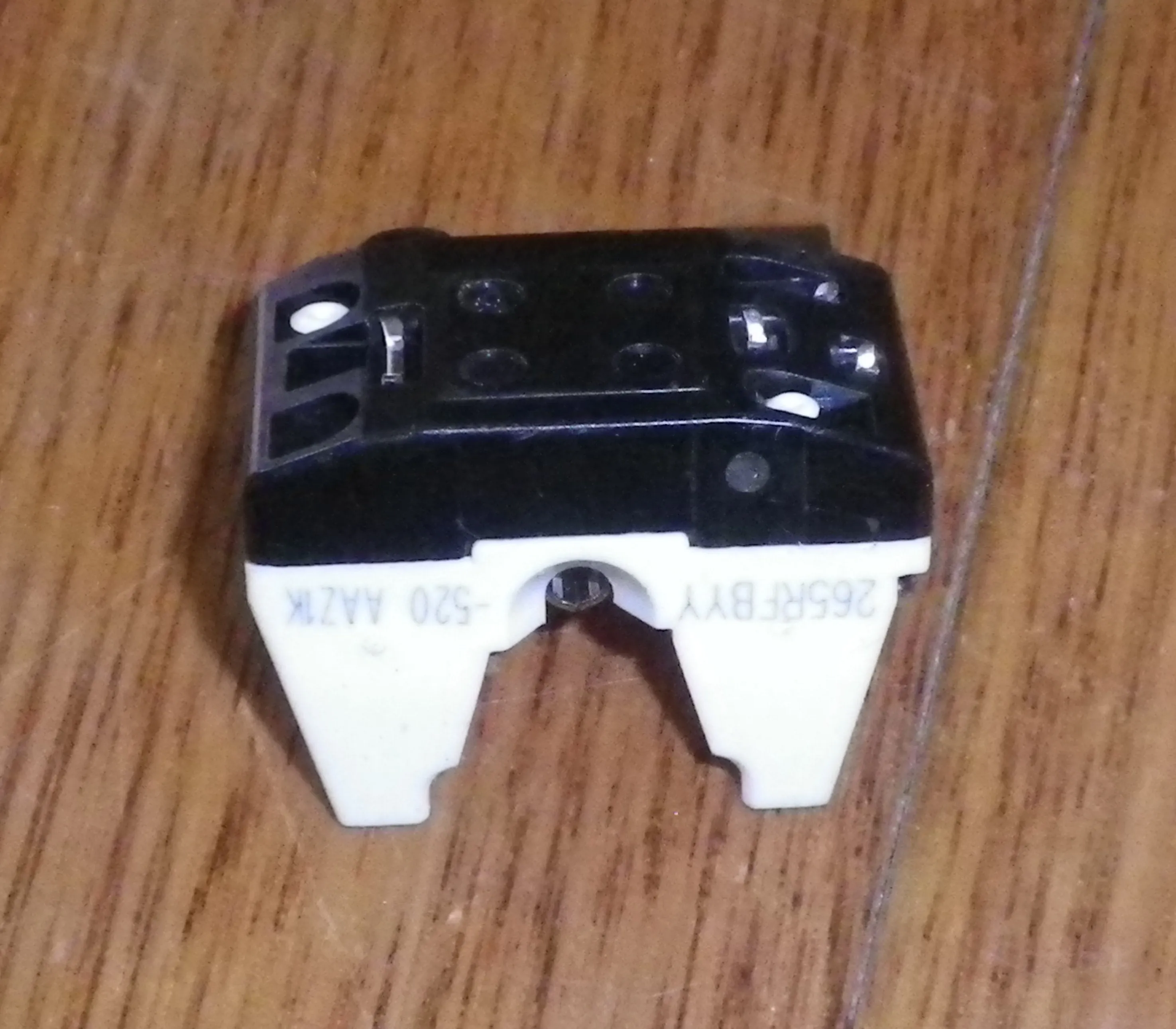

Overload has Klixon 4TM 265RFBYY & -520 AAZ1K printed on it.

Trip current - 2.06amps.

Suits many 230-240VAC LG hermetic compressors in the 1/3 - 1/4HP range. Suits compressor models LX67LABH, LX67LABM, LX72LADM, LX72LAEM, LX86LAEM, LQ86LAEM, LA95LAEM, LC95LAEH.

Installs in seconds.

This overload cutout is used in many LG & Westinghouse fridges including models GR-P197NIS, GR-B207NI, GR-G227TVS, GR-B247WVS, GR-B247WSS, GR-L207NI, GR-L247WSS, GR-L247NI, GR-L247NIS, GR-L247NSS, GR-L247STB, GR-G267TV, GR-L247TSS, GR-L247WH, GR-L207WV, GR-L247WV, GR-L247WVS, GR-L257NI, GR-L267NI, GR-P197WVS, GR-P197NIS, GR-L227STG, GR-P227STG, GR-B227STS, GR-L247TS, GR-B207DVZAGR, GR-B207DVZAGR, GR-P207TJA, GR-B207DTZAGR, GR-B226ACF, GR-B247WV, GR-L207NSUAGR, GR-P197QJAGR, GR-P207DVUA, GR-P247MSZGR, GR-P257STB, GR-B207WV, GRL257STS, GR-L207DVUA, GR-L247GTZ, GRP227STQ, GR-P197QTJA, GR-P257SVB, GR-L207NI, GR-L247STB, GR-B247WSS, GR-B207WV, GR-G267TV, GR-L247TS, GR-L247TSS, GR-L247WH, GR-L247NIS, GR-B207NI, GR-L257NI, GR-L247WVS, GR-L267NI, GR-P197WVS, GR-L247NSS, GR-B247WVS, GR-L247NI, GR-B226ACF, GR-P197NIS, GR-L227STG, GR-P227STG, GR-B227STS, GR-B207DVZA (ASWQRAN), GR-B207DVZA, GR-L247WV, GR-B207DTZA, GR-P207TJA, GR-G227TVS, GR-L207NSUA, GR-P197QJA, GR-P207DVUA, GR-P247MSZ, GR-P257STB, GR P197NIS, GR- P257STB, GR-L246NIS, GR-L247WSS, GR-L207WV, GR-B247WV RS694V, RS694V*01 RS694V, RS694V, RS695V*01, RS695V.

Note: Not all of the variations of the above models use the same compressor. If you are unsure of the suitability, please contact us prior to purchasing with your full model number including any revision numbers.

We have been supplying appliance parts to the trade and retail for over 25 years. Buy with confidence.
