CG CabCool 1401 Single 140mm Fan Cooler Kit for Cabinet / Home Theaters w/Thermal Control

Preset 840556099062 / LED Programmable 840556099079

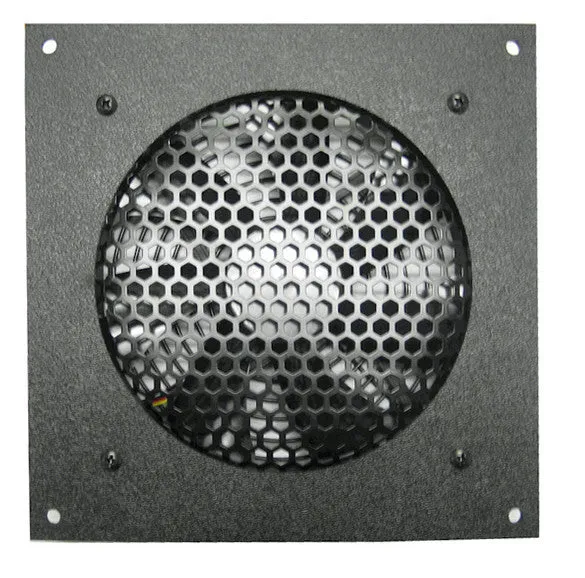

Single 140mm (7.25" x 7.25") fan kit for cooling your cabinet or multimedia center.
Includes (1) Coolerguys 140mm Fan

Designed for mounting on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 5.7" x 5.7" (145 x 145mm). Insert completed cooler assembly in hole and attach to cabinet with appropriate screws. Fans can be set to blow into or out of the cabinet depending on your needs.

Fan is 12V DC and powered by our CS 110v AC to 12v DC Power Supply (included)

Choice of Controller Style:
Coolerguys Pre-Set Thermal Controller (Rev4). Included at above price. Built in thermal sensor. Controls power to your fans to cool when you need it. With external temperature probe wire for spot placement. On @ 88°F Off @ 81°F ( /- 1°)

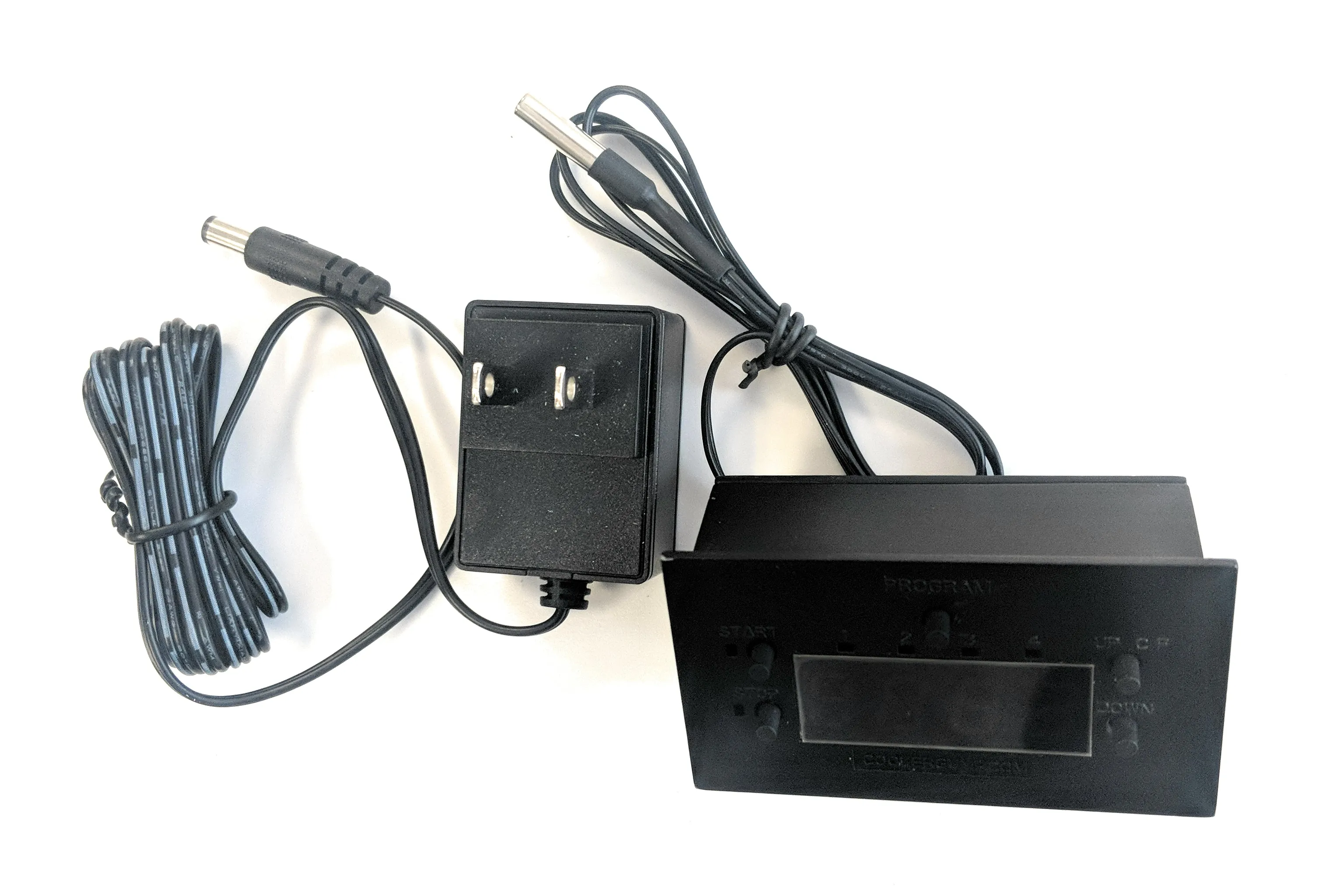

Optional Upgrade. LED programmable Controller with shelf bracket and 36" fan cable extension (additional $15.00).

Cooling Unit includes the following:
(1) CS 110v AC to 12v DC Power Supply
(1) Coolerguys 140mm Fan
(1) Black Acrylic Fan bracket (7.25" x 7.25" x .125")
(1) Coolerguys Thermal Controller
(1) Black 140mm Honeycomb Mesh Fan Grills
(1) Black 140mm Fan Grills
(8) Fan nuts and bolts
Pack - 4" Nylon Multi-Purpose Tie Black
(6) #6 - 1/2" black Cabinet screw

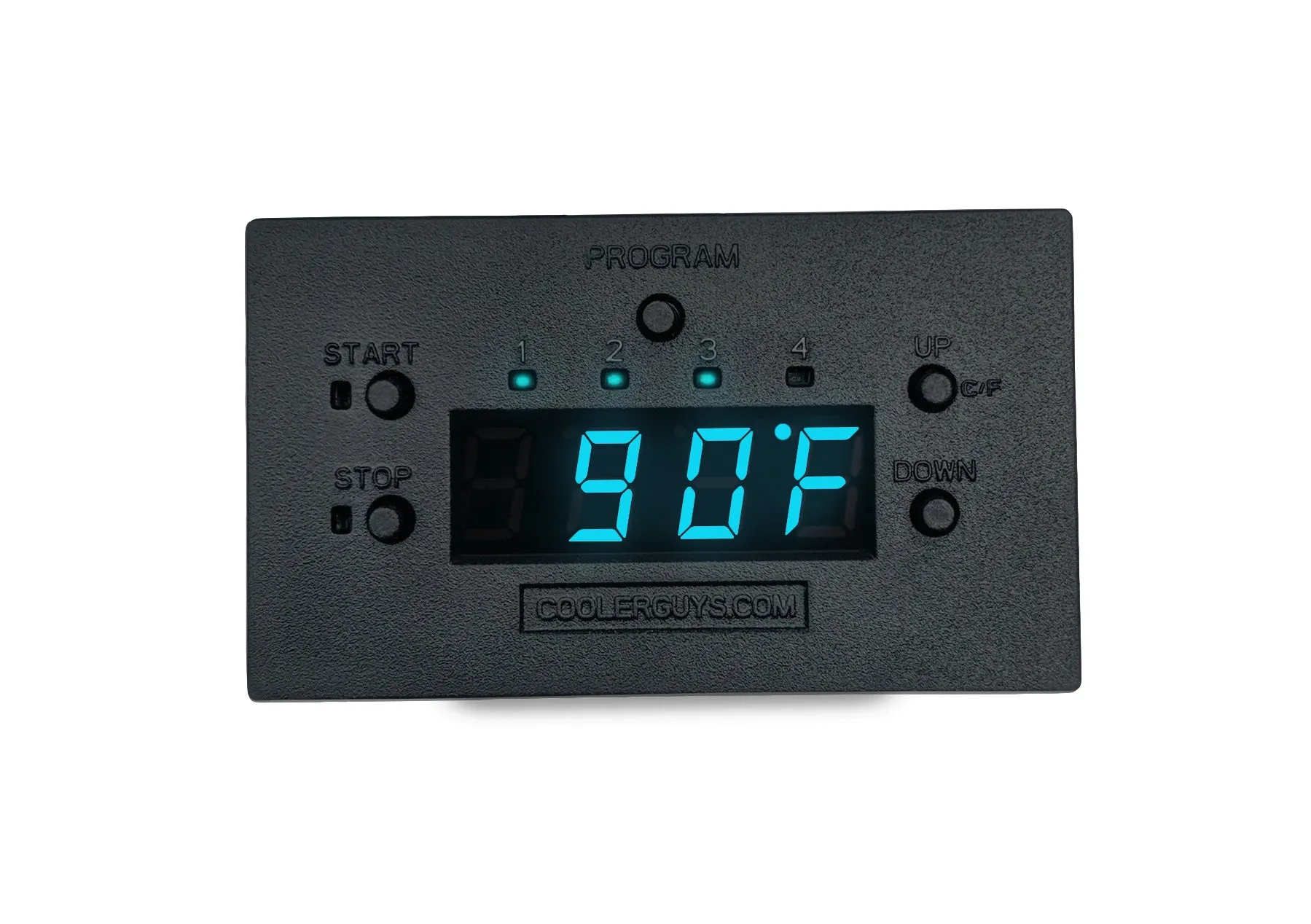

*Coolerguys Programmable Thermal Fan Controller with LED Display
*Bracket for Programmable Thermal Fan Controller (shelf mount)

*Included with LED Thermal Programmable upgrade only
All necessary screws, cables, and fasteners to complete the unit.

PRODUCT SPECIFICATIONS:
Completed Dimensions: 7.25" x 7.25"
Cabinet Cutout size: 5.7" x 5.7" (145 x 145mm)

UNIT SPECIFICATIONS:
Dimensions: 140x140x25mm
Fan Speed: 1200 RPM
Rated Power: 1.2W
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
Airflow: 73 CFM
Noise Level: 23.6 dBA

Additional Pictures of Install (500 kb pdf)
